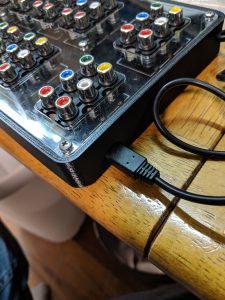

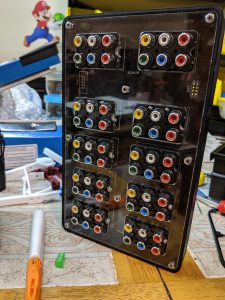

I was loaned a GComp (8×2) case by a twitter follower in order to make a custom case for the switch. I was really enamored with the look of the switch, the PCB has a really great look to it. So rather than hide all the beauty of SuperG’s hard work I decided to keep the clear plexy covers and instead make a bumper that keeps fingers and debris out of the important bits, but still allow a view of the cool look of the device.
Installation is simple,
Remove all the screws and spacers from your switch
Set aside your plexi panels
Press 6 of the hex spacers into the holes on the bumper case
Install the switch by putting the USB port into the hole and lever in the rest of the way
Screw the two remaining hex spacers into the center holes on the plexy top
Install the plexy top on and screw the remaining 6 screws into the top.
Flip the case over.
I insert the 8 bottom screws into the Plexy bottom and put a piece of cardboard under it to keep them in place.
put the small spacers on the screws and set the case on top of the plexy panel
Flip everything over and tighten the screws.
I will be doing a video walking through the installation to post to the Laser Bear YouTube channel
Files to print this case are available here: http://www.retrorgb.com/assets/3dprint/GCompSwitchCase_2019-08-12.zip
These are also available on LaserBear.net for purchase
